How does Cirrus work?

This section will give you the background of the technology that is used to make and receive calls using Cirrus. Understanding how your calls get to and from your computer will help you make the most of the software and increase your productivity.

First, let’s have a look at how a normal phone call works:

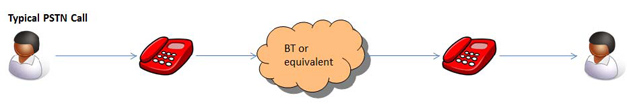

The caller lifts the handset on a phone (thereby creating the connection to the network), and dials a number. The call routes down their phone line, to the network that the caller is a customer of, and then subsequently through the Publically Switched Telephone Network (PSTN or POTS) ⁴. to the recipient’s local exchange, where it routes down the recipients phone line and the recipients phone begins to ring.

In the above diagram, the caller is using a traditional phone, which is often referred to as a ‘hard phone’ ⁵ because it is a physical piece of hardware.

Now, let’s have a look at a VoIP call made using Cirrus.

The Operator ⁶ enters a phone number into the Cirrus software installed on their computer. The computer uses the internet to route the call to Cirrus. Cirrus routes the call to our Cirrus network which then converts the call from VoIP to POTS so that the call can be delivered to the recipient who in most cases is not using a VoIP system. The call goes from Cirrus to the network the recipient is the customer of, to their recipient’s local exchange, down their phone line, and their phone rings.

In the above diagram, the Operator uses their computer with a headset to make the call. While the computer and headset themselves is hardware, they require software like Cirrus to be able to make and receive calls over VoIP. This software is often referred to as a ‘soft phone’. ⁷

VERY IMPORTANT! It is important to note at this stage that a soft phone is not a dedicated device for making calls. The computer will often be used for multiple applications such as email, web browsing, CRM software, streaming music and videos as well as word processing and spread sheets, all at the same time as it is expected to make and receive phone calls. The quality of the hardware and the way the operator manages their computer will have a significant impact on the quality of VoIP calls when a softphone is used. For more information on this topic, please contact Customer Support. ⁸

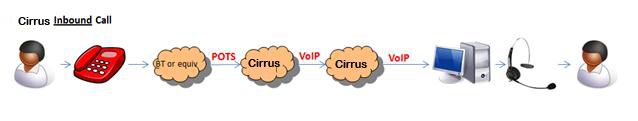

Finally, let’s have a look at an inbound call to a Cirrus Operator.

The caller lifts the handset on a phone (thereby creating the connection to the network), and dials a number. The call routes down their phone line, to the network that the caller is a customer of, and then subsequently through the PSTN until it reaches Cirrus. Call Control converts the call into VoIP and sends it to Cirrus. The soft phone on the operator’s computer indicates that a call is incoming and the operator hears ringing through their headset.

1. The features available with POTS are fairly limited. VoIP routing of calls, especially when using soft phones, allows a vast array of new technology to be used to manage business telephone calls.
   Not only does the business have more control over the routing and management of calls, it also allows the calls to carry data with them that tell operators information about the caller. With POTS, you could sometimes see who was calling. With Cirrus, you can see who is calling, what number they called, which option in the IVR they pressed, how long they have been queuing, how many times they have called in the past, listen to the past call recordings and even integrate with your CRM system so that when the call arrives, their record is open on the operators screen so that you can greet them by name.
   Another feature that is becoming increasingly desirable is the ability to route calls to multiple locations, seamlessly as if all the operators were in the same location, when in fact, all the operators could be at home due to an unscheduled heavy snowfall preventing them from getting to work.


2. Businesses, until now, have to install 2 separate communications networks. The first (and oldest) is the telephone network; the latter is the data network. While the 2 networks are separate, the investment in hardware is duplicated in many areas. For example, if hard phones are required on desks, not only is there the investment in the hardware itself, but also in the cabling to the desk, which will require 2 cables, one for the phone and one for the computer. In the case of a soft phone, a business not only saves on the capital costs of the hardware because no hard phones are required, but there is also a direct saving in cabling as only 1 x CAT5 ⁹ cable is required for the computer.



   It is a common myth that by using VoIP, telecommunications infrastructure costs will be zero. The cost savings in POTS infrastructure is often replaced by increases in data infrastructure. It is also a common mistake to attempt to switch calls from POTS to VoIP without making the necessary investment in the data network to allow it to carry business grade VoIP calls. In almost all circumstances, the business will need to invest in better, dedicated internet connectivity as well as high quality human interface devices (HIDs) ¹⁰ such as business grade headsets.

3. Cost efficient call routing. VoIP allows the business to route a part of each call over VoIP, where the costs are much lower than with POTS. It is another common myth that VoIP calls are free. This is because, for businesses, it is rare to have both the caller and the recipient using VoIP. In almost all business circumstances, one of the parties will be using POTS, and that leg of the call will still carry a cost. VoIP does however allow the business to be more cost efficient with its telecommunications overall.

Cirrus is a software application which groups together system utilities we call Widgets ¹¹ into a single screen on your computer. This screen is known as a Cirrus Configuration. ¹² It is highly customisable, allowing a bespoke design for each business, and in many cases, different designs for different users within the business. Cirrus has many Widgets that allow for best practice management of calls. A summary of these widgets is as follows:

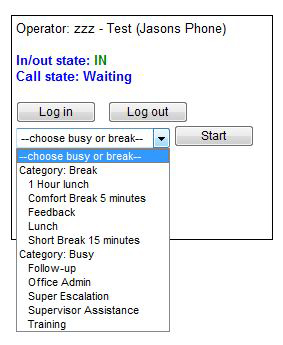

Presence Control: The Presence Control Widget allows operators to control their call handling state and log time spent in other activities to the Workforce Management reports.		License Required: Office
Phone: This displays information about a call being taken by an operator, including any script and prompting information that may be required.		License Required: Office

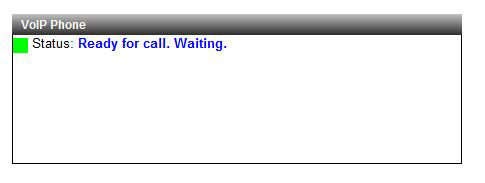

Audio Widget: Allows the configurations of Cirrus audio to tailor the soundcard and headset performance to the user’s specific requirements.		License Required: Office

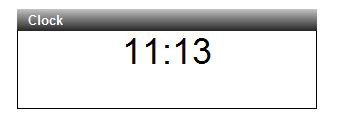

Clock: Displays the time of a pre-set territory (international businesses / callers).		License Required: Office

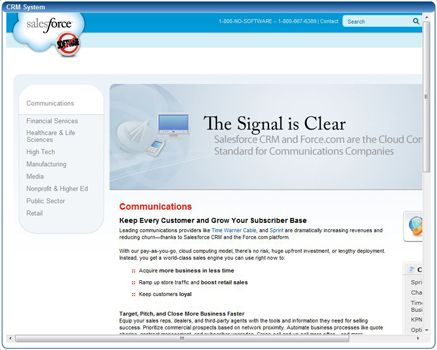

CRM Widget: Allows Web Based CRM systems to be docked within Cirrus. Also allows for the integration of telephony and CRM systems for screen popping and automatic record updates.		License Required: Call Centre

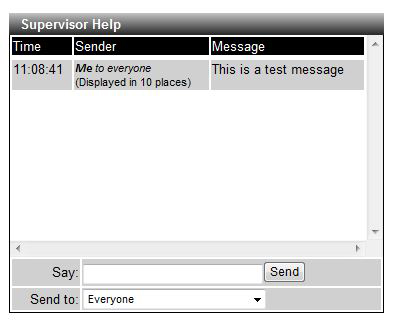

Chat Widget Chat limited from operators to Supervisors.		License Required: Call Centre

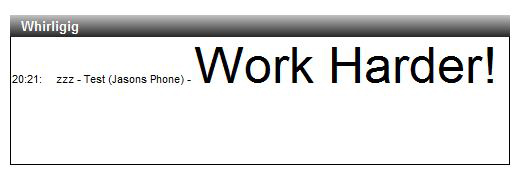

Whirligig: Allows administrators to broadcast messages to operators. Especially useful in larger environments or multi-site / region deployments.		License Required: Office
Dialler: Allows high volume outbound call activity. Is configured with lists of data pre-loaded into the system.		License Required: Call Centre

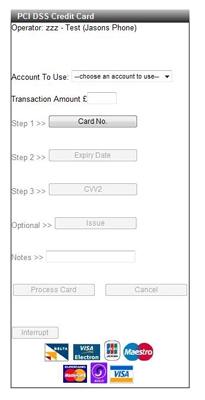

PCI DSS Credit Card Processing: Allows operators to take credit / debit card payments without ever receiving the card details from the caller. The caller uses their telephone keypad to enter their card details. Meets all PCI DSS requirements.		License Required: Call Centre
Branding: This allows you to place branding, e.g. an image, on your Cirrus configuration.		License Required: Call Centre

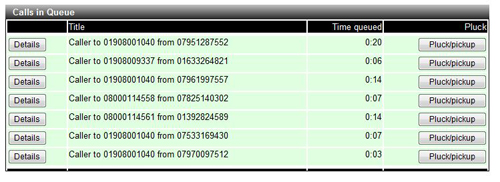

Calls in Queue: A list view of all calls in your queues. Allows operators to see what’s queuing and also to pluck calls from the queue.		License Required: Call Centre

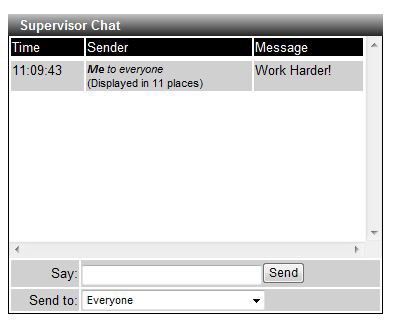

Messaging (one-to-one): One to One chat, including to Supervisors.		License Required: Call Centre

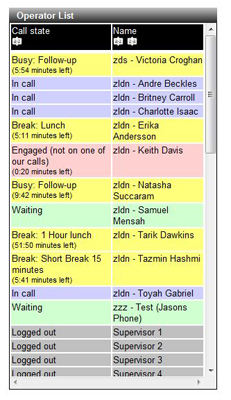

Operator List (View Only): Allows a view of other operators and their current state (logged in / out, in break, on the phone etc.)		License Required: Call Centre

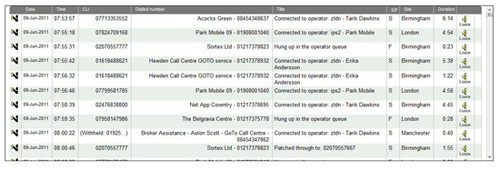

Historic Call Log: Allows a view into the operator’s call log. The operator will be able to see a history of calls, as well as listen to call recordings if desirable.		License Required: Call Centre

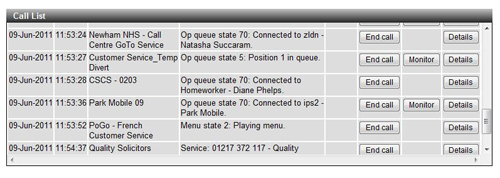

Live Call List: Allows a view of calls in progress with control over the end call and monitor functions, as well as the ability to interrogate the call details within the call log.		License Required: Administrator

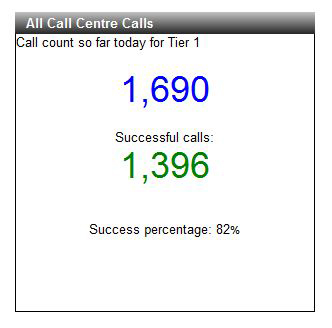

Call count: Displays the total number of calls received on a given service or collection of services so far today. You can also add in a percentage figure for successful (answered) calls.		License Required: Administrator

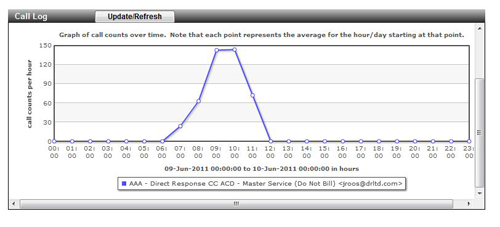

Graphical, Historic Call Log: Displays graphical information about calls received on a given service or collection of services.		License Required: Administrator

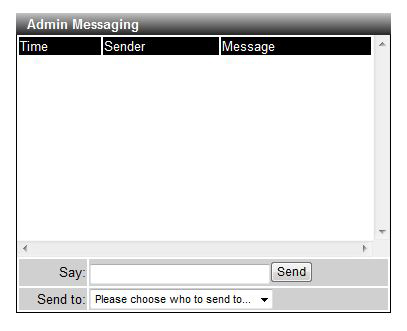

Full Messaging: One to One chat with broadcast facilities.		License Required: Administrator

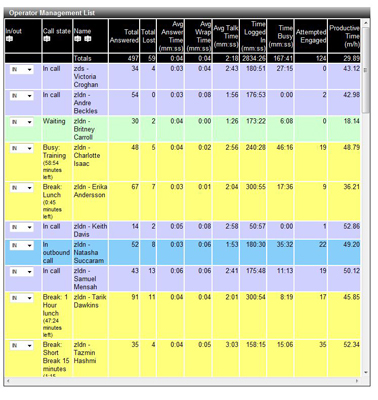

Operator Management List: Administrators can view a list of operators with live information about their state as well as statistics. Administrators can jump from this list to the operator’s configuration pages to administer the operator’s properties (assigned queues, ring times, skill sets, wrap times etc.)		License Required: Administrator

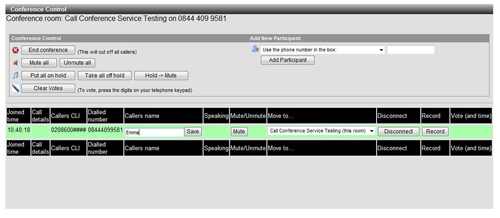

Conference Control: Allows an administrator to control a conference call, including mute controls, adding participants, requesting participant’s votes and recording all or part of the call.		License Required: Administrator

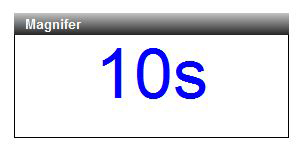

Magnifier Control: Allows a cell in the Operator Management List to be highlighted. Allows the Administrator to focus on specific elements of the list (wrap time for example).		License Required: Administrator

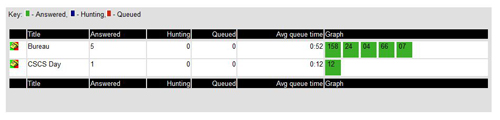

Queue Bar Graph: Displays live information about calls in queues. Each block represents a single caller. The colour denotes the call state of the call and the numbers in the box can be configured to display either queue time or locational information of where the call is queuing or answered.		License Required: Wallboard

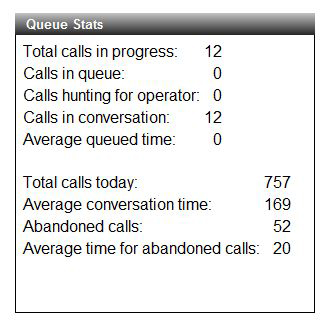

Queue Overview: Displays a numeric summary of live and historic information.		License Required: Wallboard

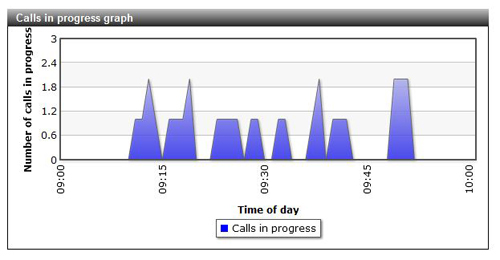

Calls in progress graph: Shows a graph of how many calls are in progress, irrespective of whether they are in a queue or not (Calls in IVR for example).		License Required: Wallboard

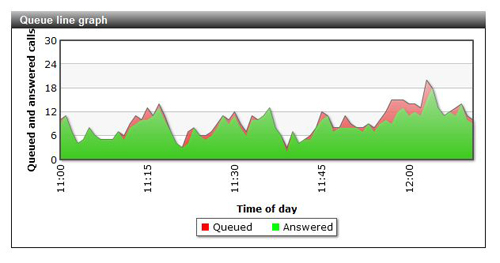

Queue Line Graph: A more detailed version of the graph above, this widget displays a detailed view of calls queued (in red) overlaid with calls answered. Clearly allows periods of high call demand to be displayed.		License Required: Wallboard

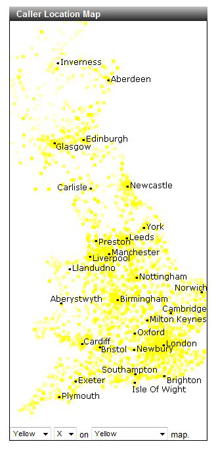

Caller location map: Displays the caller’s location based on their CLI prefix. Calls from mobiles are displayed at the top right of the image.		License Required: Wallboard
Response rate indicator: Allows you to specify a SLA measurement, for example % of calls answered in X seconds, and display the call centre’s performance against the SLA over a measured time.		License Required: Wallboard

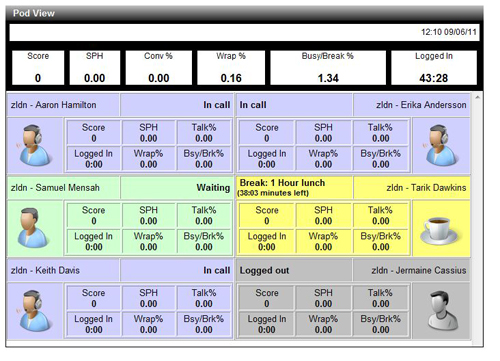

Pod View: Allows you to display operator performance information for groups of operators, perhaps functional teams, or for a group in close proximity to each other.		License Required: Wallboard

The following are some examples of Cirrus configurations combining the widgets above:

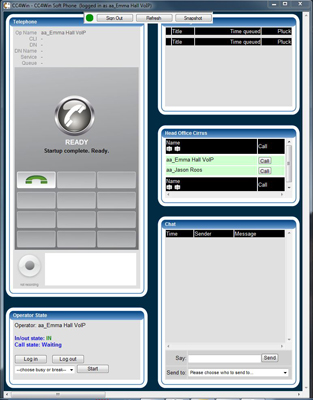

Office User:		License Required: Office

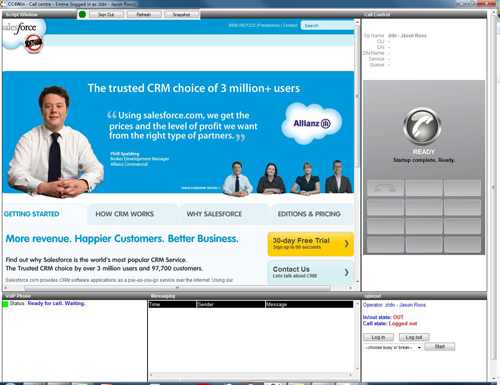

Call Centre:		License Required: Call Centre

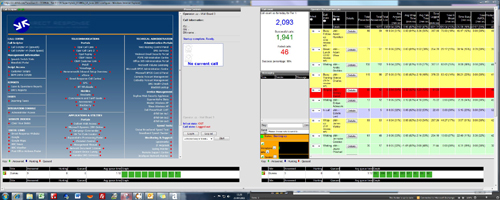

Administrator:		License Required: Administrator

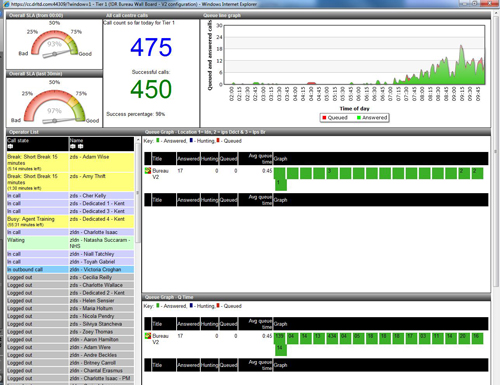

Wallboard:		License Required: Wallboard

Different Cirrus Configurations require different license types. Licenses are consumed on a concurrent ¹³ basis and are pre-ordered for your business. License costs are based on the amount of Cirrus and Cirrus resources that a License type will consume.

For example, an Office User will use less resource than a Call Centre user because the Call Centre user will often have CRM integration and be assigned to several queues. Similarly, an Administrator user, who can see live data about the whole environment, will use more than a Call Centre user.

The most resource intensive License is the Wallboard, because it provides live information from a vast array of varied data sources and performs thousands of database queries per minute.

is a twisted pair (4 cables) of high signal integrity cable type recognisable with RJ45 connectors in the picture below
